Standing Seam Metal Roof – 6200 Columbia Lake Road in Fairmont Hot Springs

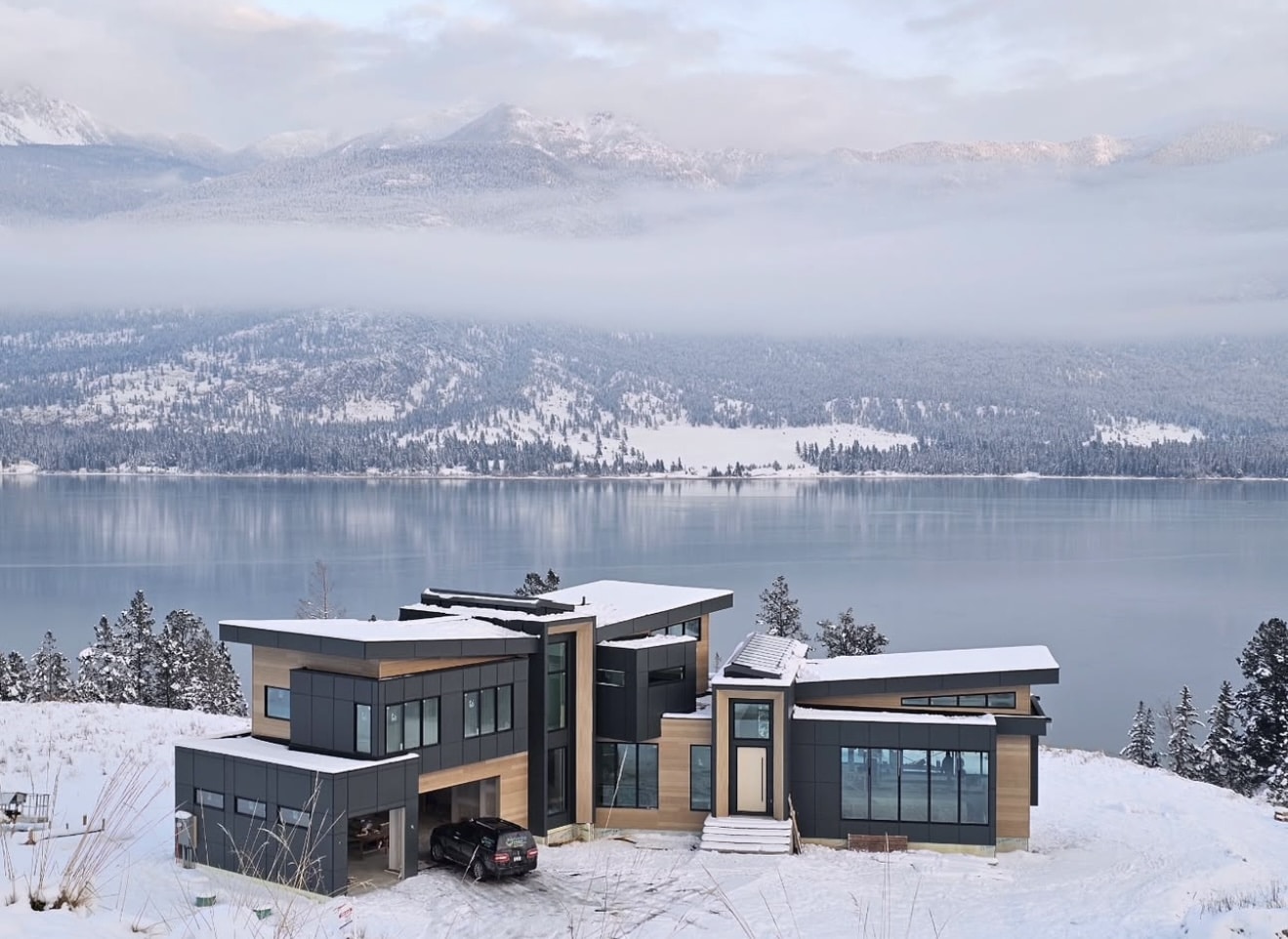

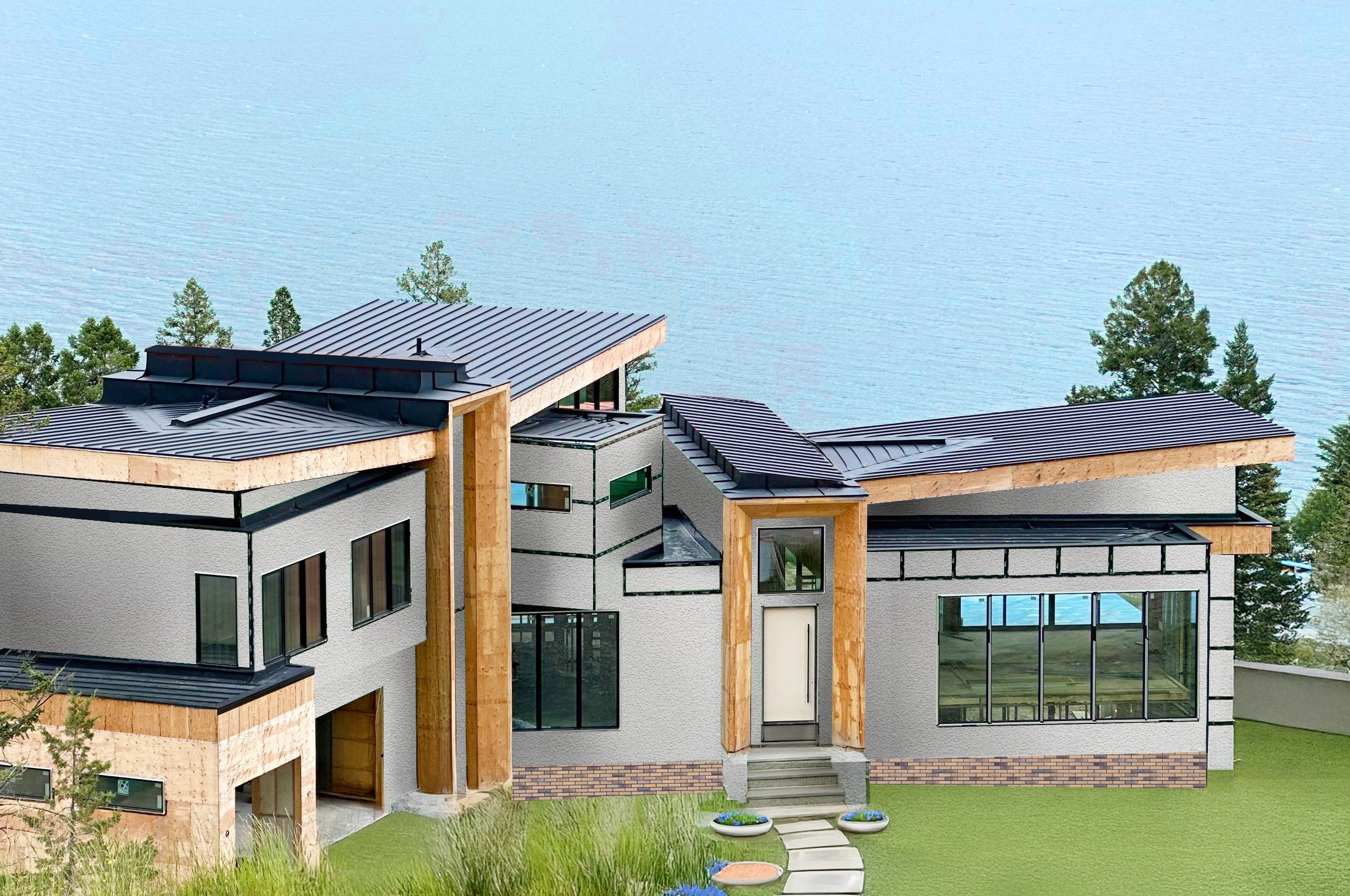

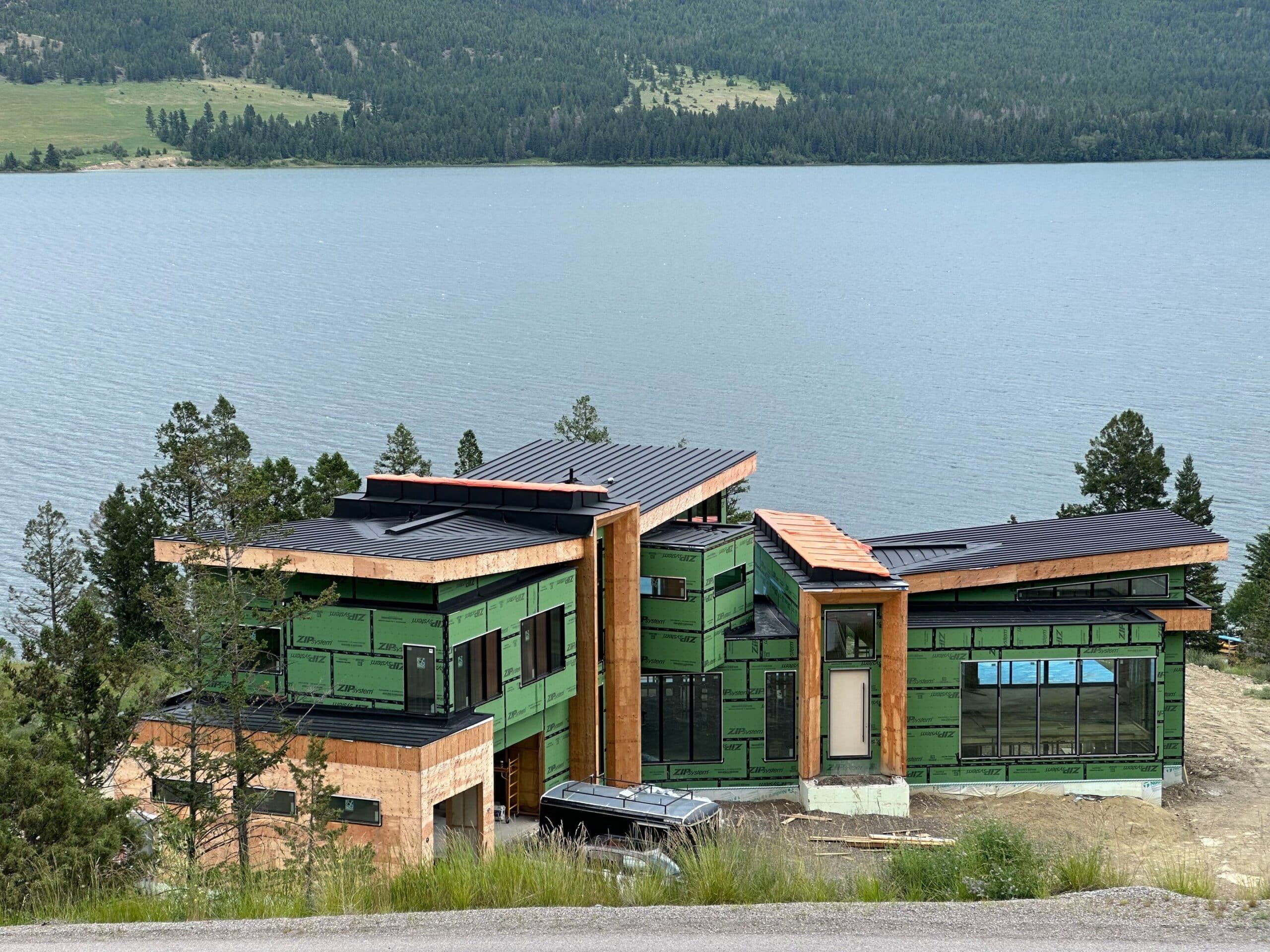

This project at 6200 Columbia Lake Road in Fairmont Hot Springs features a custom standing seam metal roof designed to complement modern architecture while standing up to the demanding mountain climate of the East Kootenay region. The clean roof lines and low-slope transitions required precise layout and detailing to ensure both performance and visual consistency.

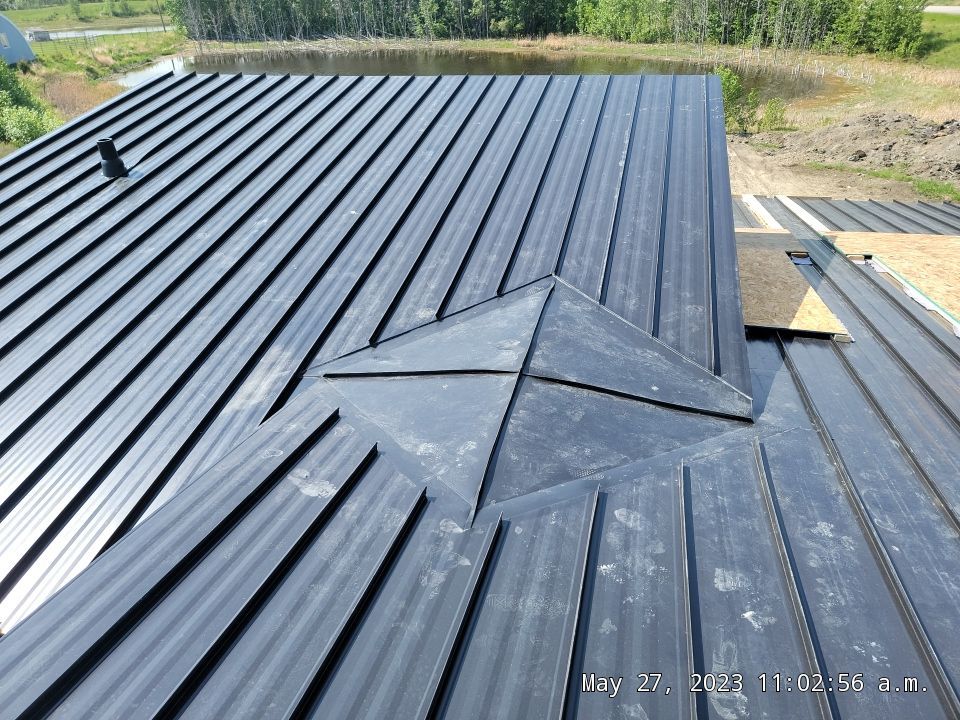

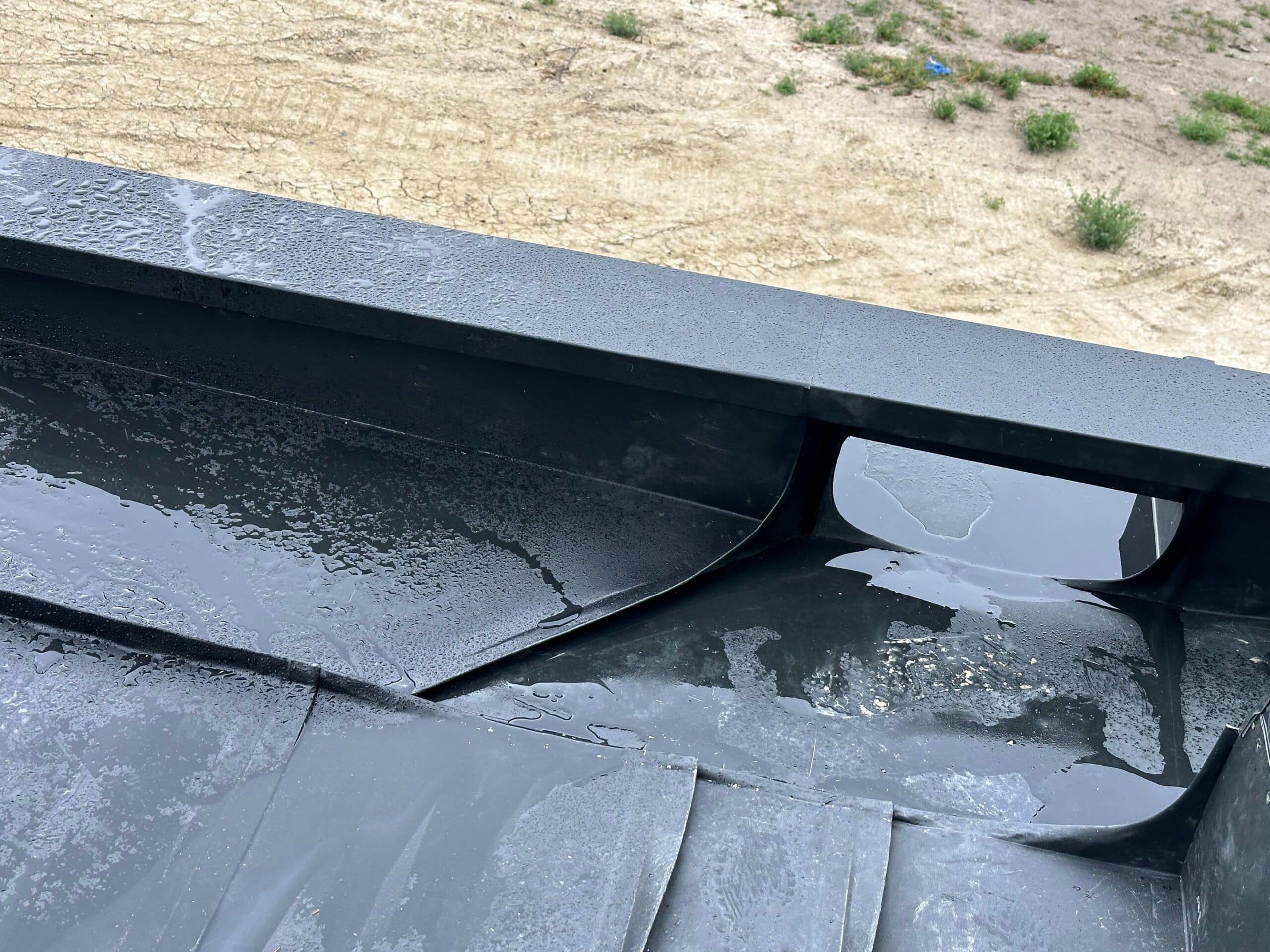

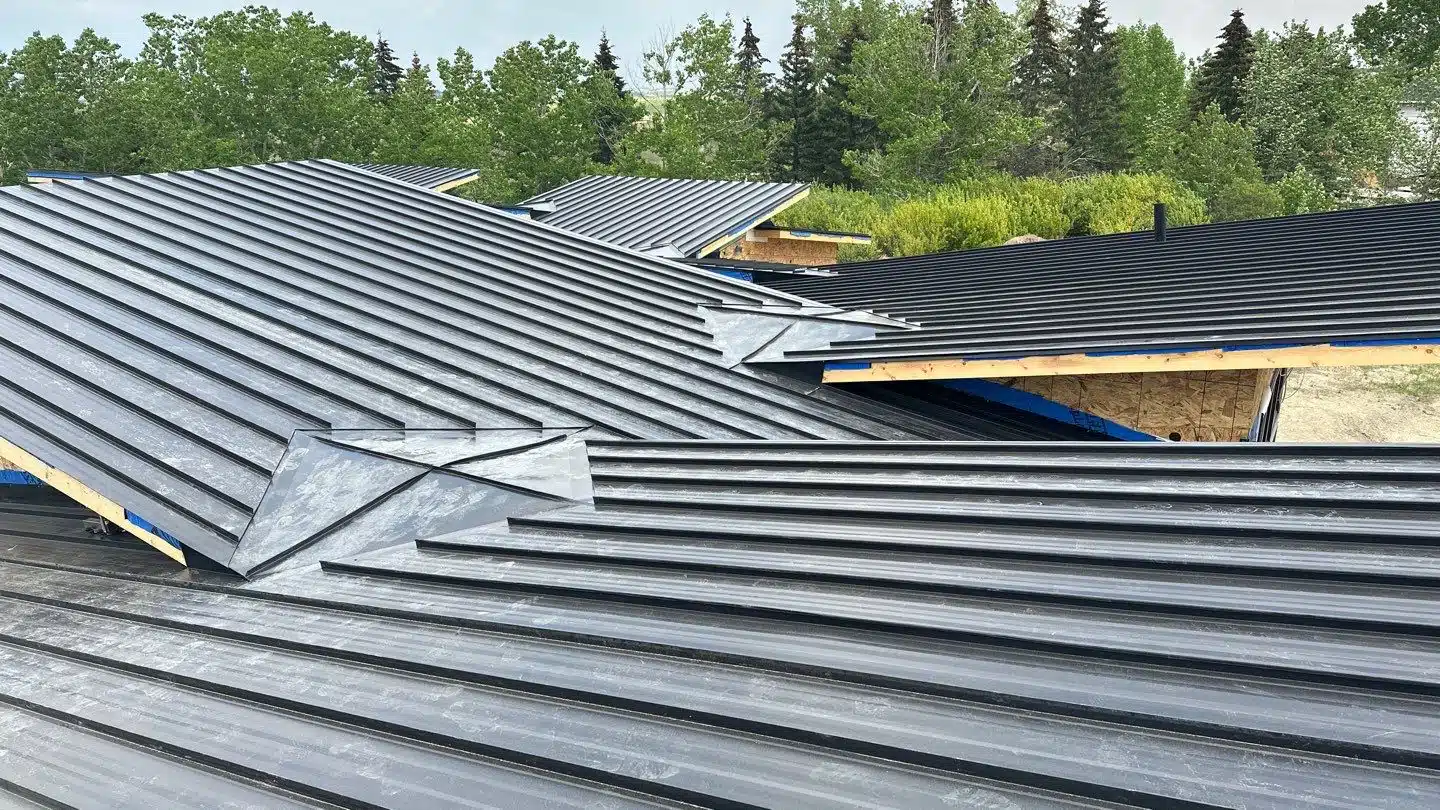

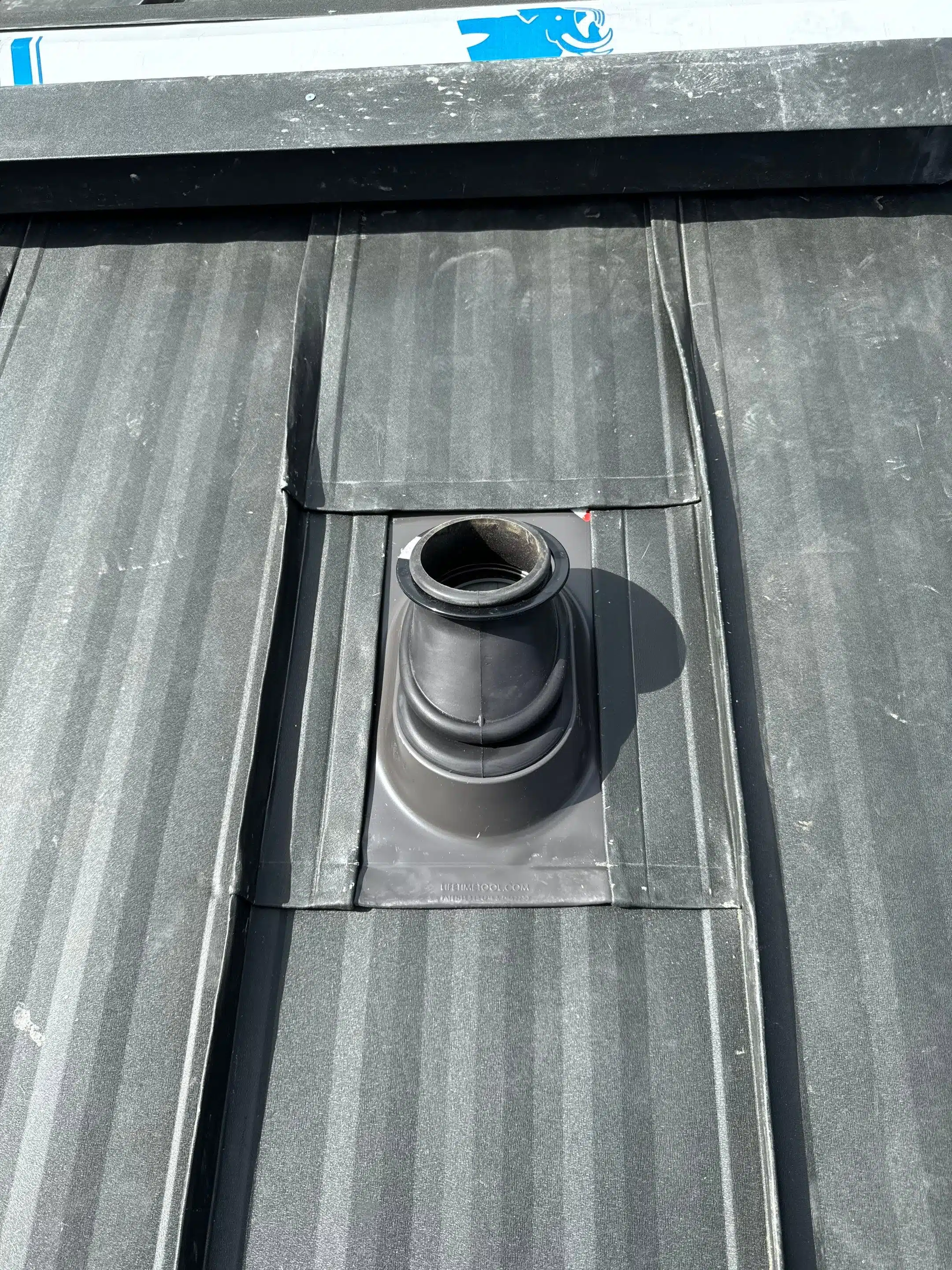

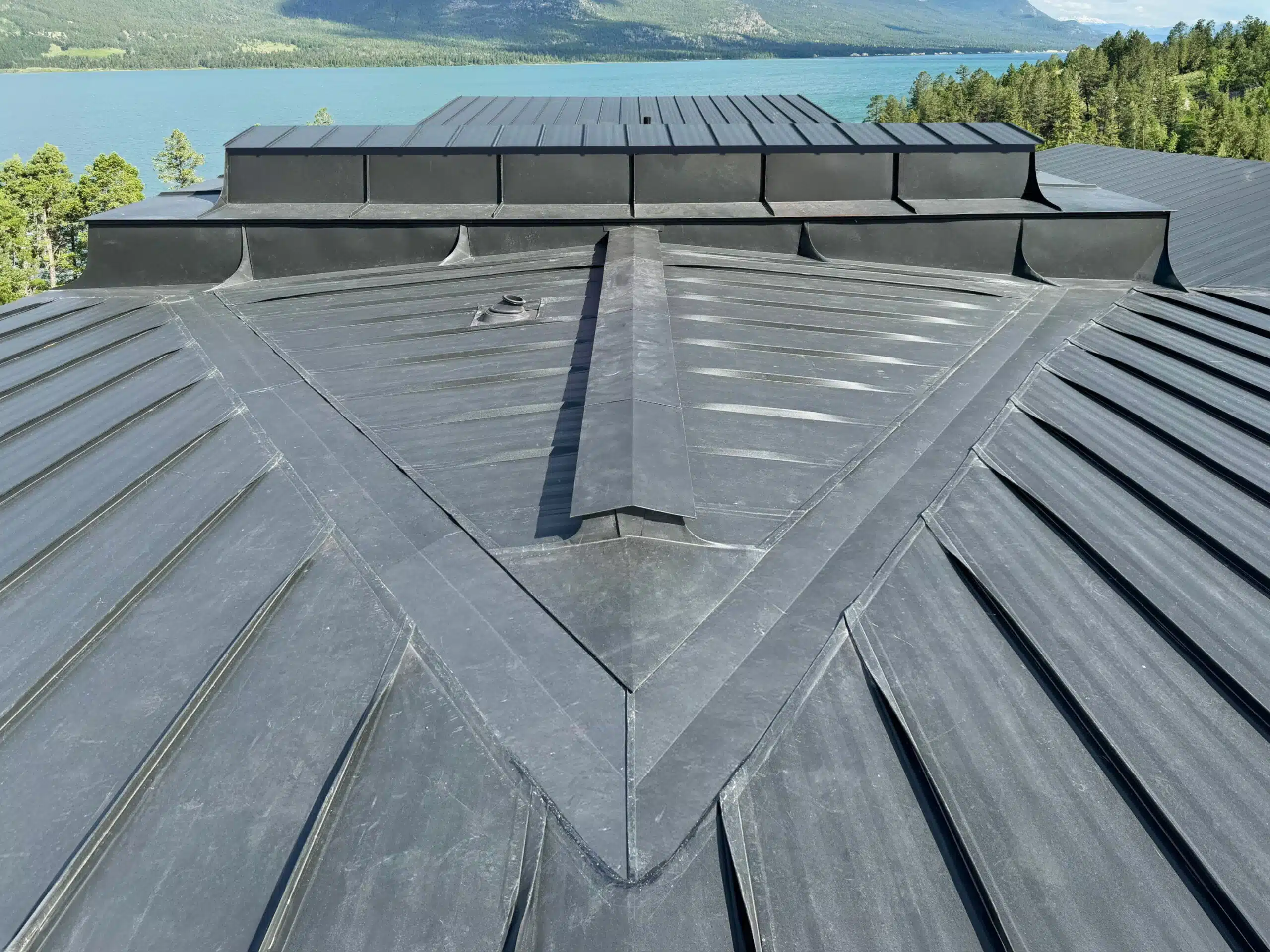

We installed a black standing seam metal roofing system using premium materials and concealed fasteners, allowing for thermal movement and long-term durability. Particular attention was given to edge details, transitions, and penetrations to maintain watertight integrity and a clean architectural finish—especially important for a lakeside property exposed to wind, snow loads, and seasonal temperature swings.
This roof was built with longevity in mind. Standing seam metal is an ideal choice for Fairmont Hot Springs homes, offering low maintenance, excellent snow shedding, and long-term value. The result is a modern, durable roofing system that will protect the home for decades while enhancing its overall architectural presence.
Overlaying Metal Roof on Existing Shingles
- Fairmont Hot Springs address
- Standing seam
- Black
Type of roof
-
Standing Seam Panels
Standing seam panels are designed with two primary seaming options to meet different needs: single lock and double lock systems. The single lock option is best suited for residential roofs with standard slopes and facades, providing reliable performance in typical applications. For low-slope roofs, the double lock system offers enhanced seam strength and a watertight seal that excels in Alberta’s tough climate. This design ensures added protection against water infiltration, making it particularly effective in withstanding snow, wind, and fluctuating temperatures.
Each panel’s seams are mechanically locked using specialized tools. This technique creates an exceptionally strong bond that provides outstanding resistance to wind uplift with excellent weatherproofing, which is especially crucial in Alberta’s extreme conditions. Usually, the height of the locks ranges from 1 to 2.5 inches, while the panel widths are to be specified for each particular project. Panel design accounts for natural expansion and contraction without warping or loosening over time. Because metal roofing focuses on long-term value, it offers the ideal blend of durability, efficiency, and refined aesthetics desired by most homeowners.
Benefits of residential metal roofing
-
100% Fire Proof
-
200 mph Wind Resistance
-
Lifetime Transferable Warranty
-
Eco Friendly (doesn’t end up in a landfill site)
-
Pulls excess heat
Pulls excess heat + humidiy
-
Air circulation
Promotes good air circulation
-
Cost
Cost free operation
